Description
Key Features
7kW Fast Charging – Ideal for all Type 2 compatible EVs and plug-in hybrids.
Smart Connectivity – Control and monitor via Bluetooth, Wi-Fi, Ethernet, or the DynaCharge App.

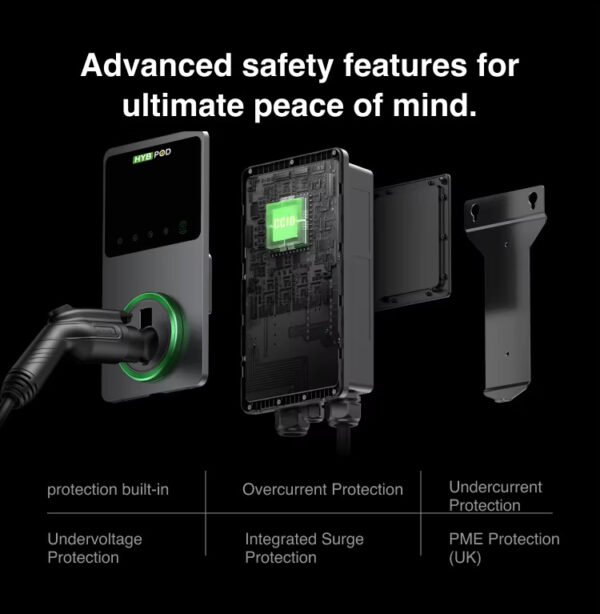

Comprehensive Safety Protection – Overcurrent, overvoltage, undervoltage, ground fault detection (20mA CCID).

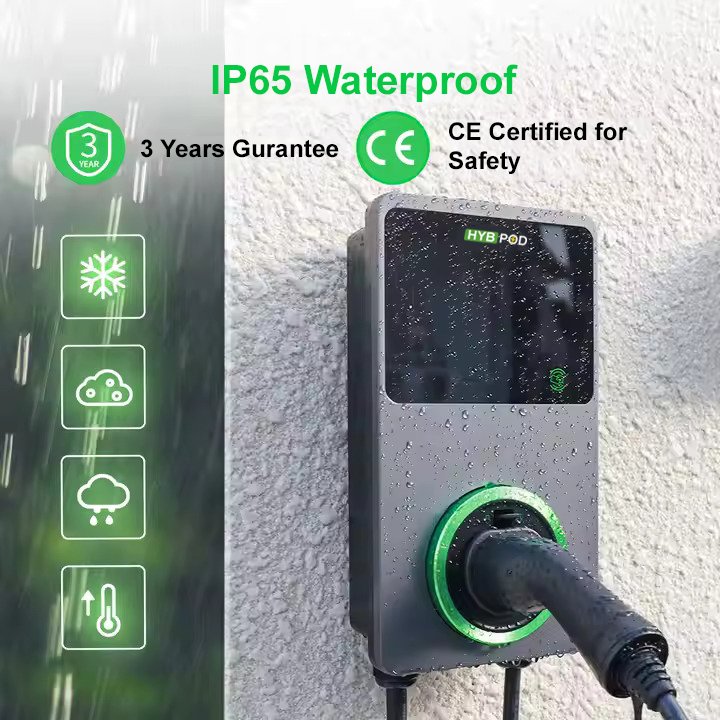

Robust Outdoor Design – IP65 & IK10 rated for dust, water, and impact resistance.
OTA Firmware Updates – Stay up to date with seamless over-the-air updates via DynaCharge software.
Universal Compatibility – Supports all EVs with Type 2 interface; conforms to IEC 62196 and OCPP 1.6J standards.
Product Description

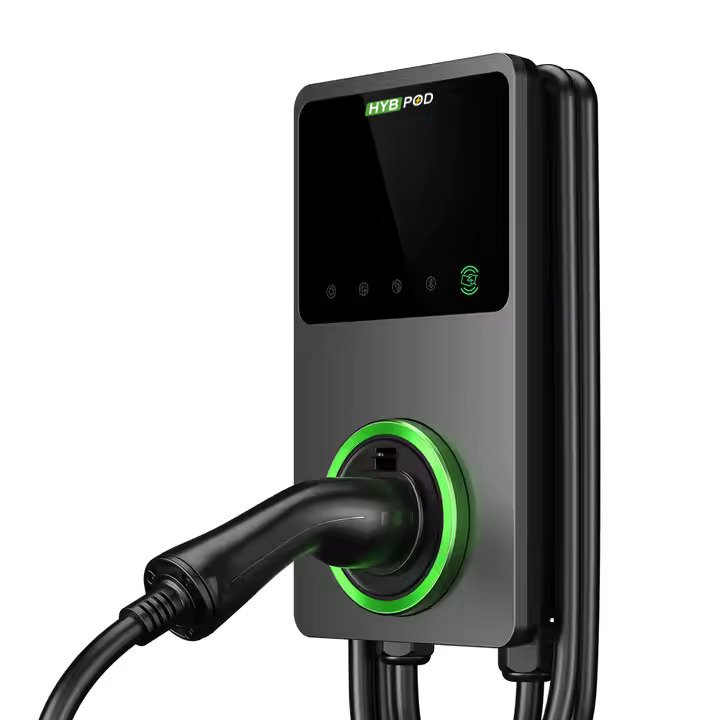

Bring fast, reliable, and intelligent EV charging to your home or business with the HYBPOD 7kW Smart Wall Charger. This single-phase AC charger supports 32A output and is compatible with all Type 2 electric vehicles, offering flexibility and efficiency in one sleek unit.
The charger integrates with the DynaCharge App and provides real-time data insights via cloud connectivity. It features advanced protection systems, including ground fault detection and temperature monitoring, ensuring safe operation in all environments. With IP65 water resistance and impact-resistant casing (IK10), it’s built to withstand harsh UK weather conditions.
Whether wall-mounted or installed on a pedestal, the charger suits both residential and commercial installations.
Specifications
| Specification | Details |
|---|---|
| Charging Power | 7kW (230V AC, 32A) |

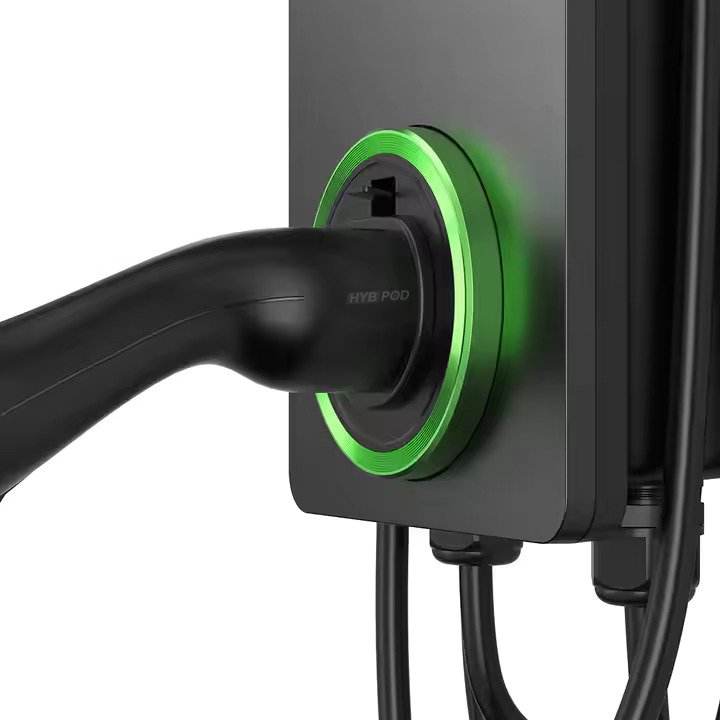

| Connector Type | IEC 62196 Type 2 plug |
| Cable Length | 5m (optional 7.5m) |
| Input Voltage | 230V ±15%, Single Phase |
| Frequency | 50Hz |
| Operating Temp | -40℃ to +55℃ |
| Mounting Options | Wall-mounted or floor pedestal |
| Connectivity | Bluetooth, Wi-Fi, Ethernet, CAN, RS485 |
| Communication Protocols | OCPP 1.6J |
| User Authentication | App, RFID Card, QR Code (with LCD) |
| Certifications | CE Certified, IEC/EN 61851-1, EN 62479 |
| Dimensions (H×W×D) | 336×187×85mm |
| Warranty | 3 Years |
What’s Included
1x HYBPOD 7kW Wall Charger
5m Charging Cable (Type 2)
Installation Manual
Mounting Kit
Alex –
Been using the Hybpod 7kW charger for a while now—works really well. It charges consistently, looks neat on the wall, and was easy to set up. The smart features are handy, though the app could be smoother. Cable’s a bit short, but overall, great value for the price.
